Cable Ties

Candour offers different types of Cable Ties both Nylon & Stainless Steel which are available in different sizes, coating options, different lock system for different applications.
Candour also offers different types of market tags as well for different kind of application and needs according to the client requirement.
The common cable tie, has a flexible tape section with teeth that engage with a pawl in the head to form a ratchet so that as the free end of the tape section is pulled the cable tie tightens and does not come undone. Some ties include a tab that can be depressed to release the ratchet so that the tie can be loosened or removed, and possibly reused.

Catalogue Link For More Information

Nylon Cable Tie

Technical Specification


  • Material

    Nylon 66

  • Flammability

    UL-94 V2

  • Operating Temperature

    -40°C to 85°C

  • Features

    Self Locking, One-piece construction, Non-Reusable

  • Approval

    UL/ROHS

  • Packaging

    100psc/pack (Customize packing available on request)

  • Colours

    Natural & Black (Other colours like Red, Blue, Black & Green available on request)

  • Size availability

    - 203 mm to 750 mm length & width 4.8 mm to 7.6 mm

construction

Stainless Steel Cable Tie

Types:
1) Ball Lock steel lock – coated & uncoated
2) Ball lock spring steel ties – coated & uncoated
3) Reusable steel ties – coated & uncoated
4) Multilock ladder steel ties – coated & uncoated
construction

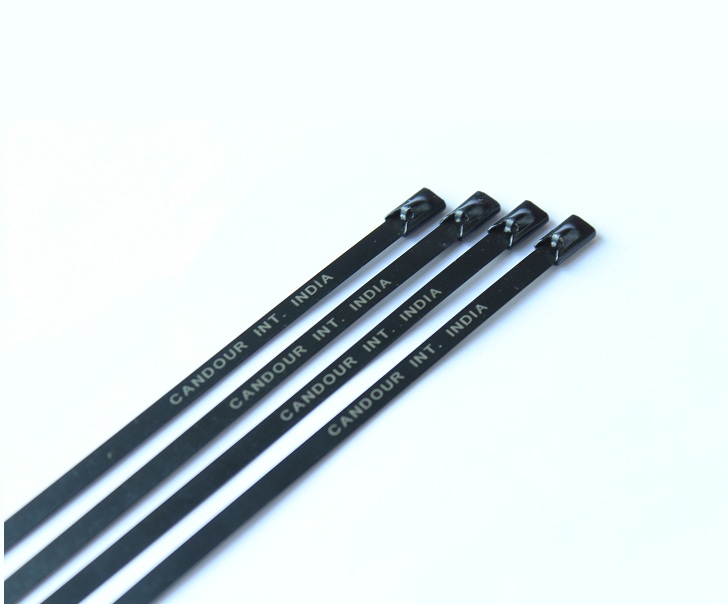

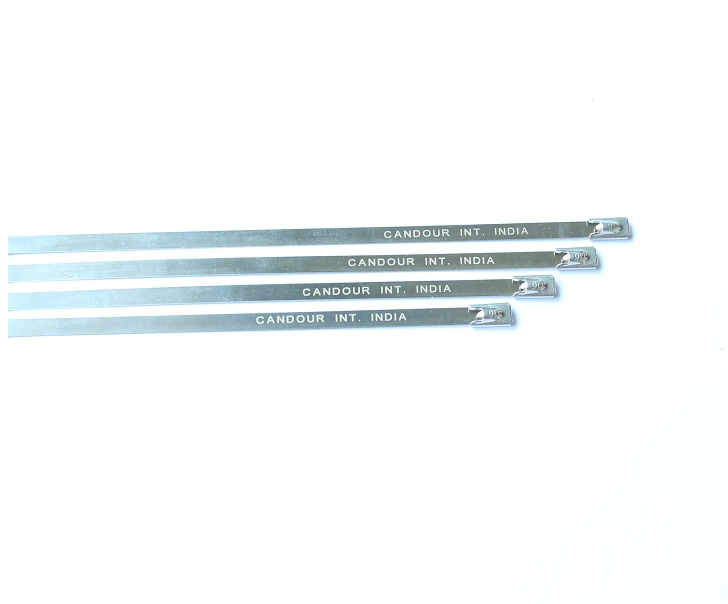

1) Ball Lock Steel Lock

  • Type

    Coated

  • Material

    Stainless steel type 304 & 316,cables sizes can be customized.

  • Operating Temp:

    80° C – 150° C

  • Size availability:

    150 mm to 1000 mm length & width 4.6mm to 12.7 mm

  • Packaging:

    100 pcs/pack (customized packing on request).

  • Features:

    Fully coated MBT, made from type 316 stainless steel with polyester coating, Non-releasable locking feature, Coated cable tie with smooth edges, Comfortable handling and installation, Eliminates contact corrosion between dissimilar materials during application

  • Type

    Uncoated Specification

  • Material

    Stainless steel type 304 & 316, cables sizes can be customized,

  • Operating Temp:

    80° C – 525° C

  • Size availability:

    150 mm to 1000 mm length & width 4.6mm to 12.7 mm

  • Packaging:

    100 pcs/pack (customized packing on request)

2) Ball lock spring steel ties

  • Type

    Coated Specification

  • Material

    Stainless steel type 304 & 316,cables sizes can be customized

  • Operating Temp:

    80° C – 150° C

  • Size availability:

    150 mm to 1000 mm length &width 4.6mm to 12.7 mm

  • Packaging:

    100 pcs/pack (customized packing on request)

  • Features:

    Polyester Coated Self-locking, good for installation on resilient Objects

  • Features:

    Polyester Coated Self-locking, good for installation on resilient Objects

  • Type

    Uncoated Specification

  • Material

    Stainless steel type 304 & 316, cables sizes can be customized

  • Operating Temp:

    80° C – 150° C

  • Size availability:

    150 mm to 1000 mm length & width 4.6mm to 12.7 mm

  • Packaging:

    100 pcs/pack (customized packing on request)

  • Features:

    Self-locking, good for installation on resilient Objects

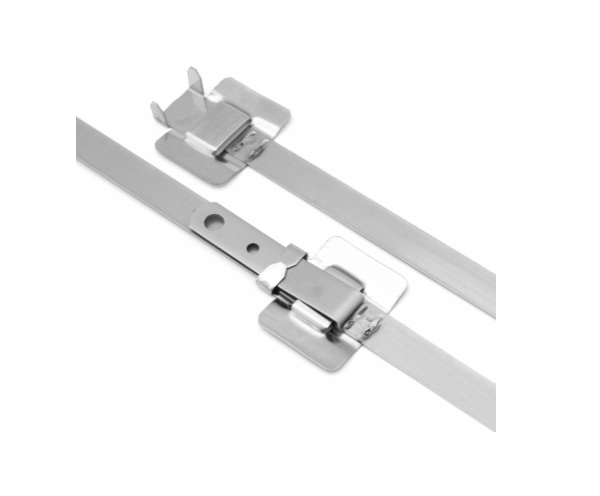

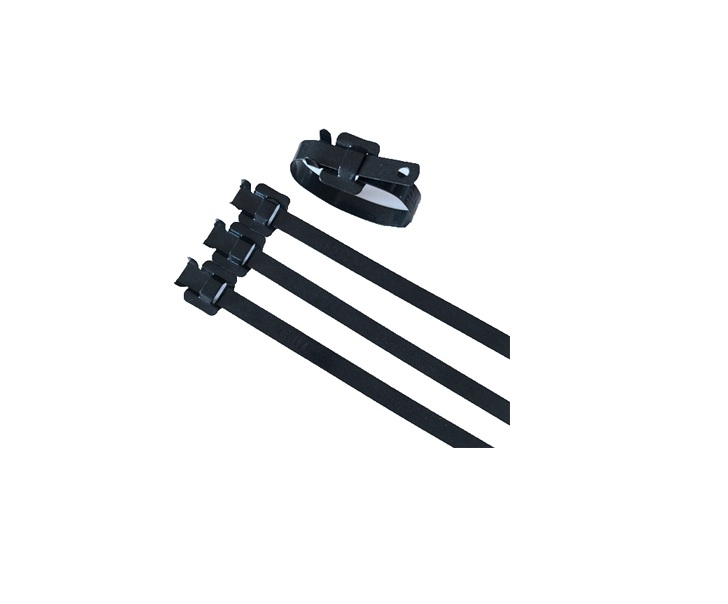

3) Reusable steel ties

  • Type

    Coated Specification

  • Material

    Stainless steel type 304 & 316, cables sizes can be customized

  • Operating Temp:

    80° C – 538° C

  • Size availability:

    150 mm to 1000 mm length & width 4.6mm to 12.7 mm

  • Packaging:

    100 pcs/pack (customized packing on request)

  • Features:

    Polyester Coated Self-locking, good for installation on resilient Objects

  • Type

    UnCoated Specification

  • Material

    Stainless steel type 304 & 316, cables sizes can be customized

  • Operating Temp:

    80° C – 538° C

  • Size availability:

    150 mm to 1000 mm length & width 4.6mm to 12.7 mm

  • Packaging:

    100 pcs/pack (customized packing on request)

  • Features:

    Self-locking, good for installation on resilient Objects Coated Specification

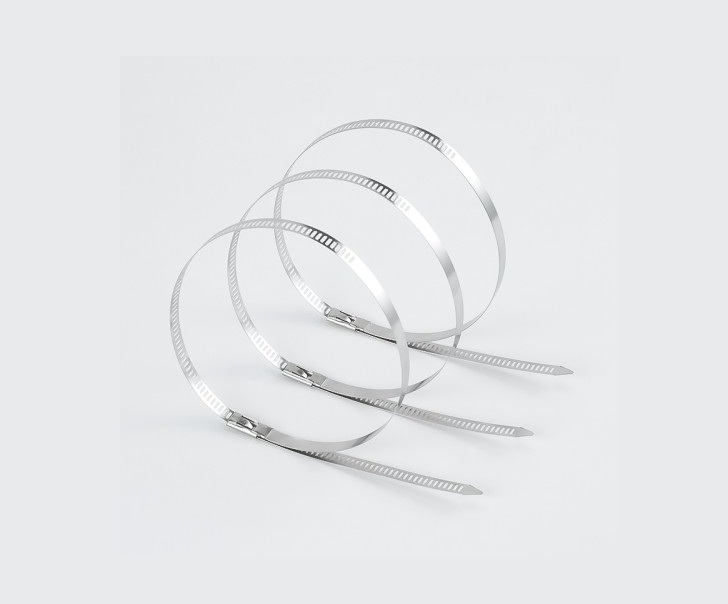

4) Multilock ladder steel ties

  • Type

    Coated Specification

  • Material

    Stainless steel type 304 & 316, cables sizes can be customized,

  • Operating Temp:

    80° C – 150° C

  • Size availability:

    150 mm to 1000 mm length & width 7mm to 12.7 mm

  • Packaging:

    100 pcs/pack (customized packing on request)

  • Features:

    Polyester Coated Self-locking,good for installation on resilient Objects

  • Type

    Uncoated Specification

  • Material

    Stainless steel type 304 & 316, cables sizes can be customized,

  • Operating Temp:

    80° C – 300° C

  • Size availability:

    150 mm to 1000 mm length & width 7mm to 12.7 mm

  • Packaging:

    100 pcs/pack (customized packing on request)

  • Features:

    Self-locking, good for installation on resilient Objects Objects Objects


construction
construction
construction

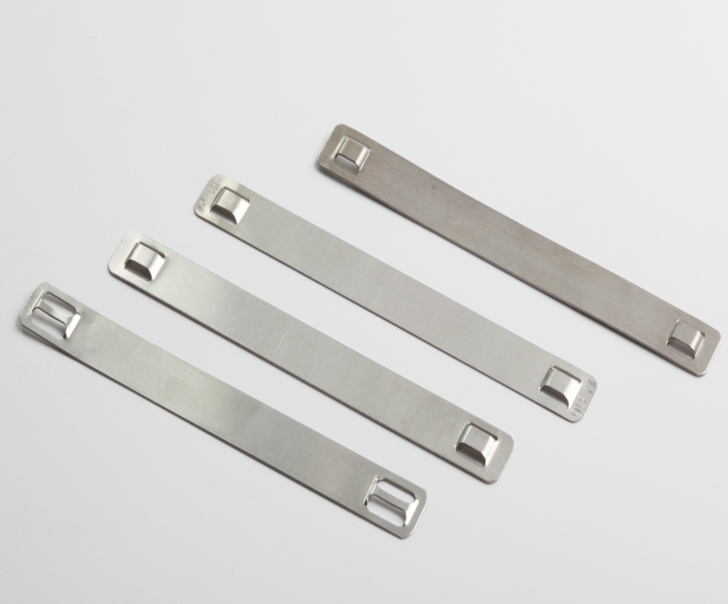

Marker Tags

Types of Stainless Steel Cable Ties:
1) Marker Plates & tags
2) Plain Marker tags
3) Custom Marker Tags
4) Carrier Strips

1) Marker Plates & tags

  • Material

    SS 316

  • Operating Temp:

    80° C – 538° C

  • Features:

    Telecommunication, Marine, Fibre Optic, Security & Alarm, Security & Alarm,Cable identification

2) Plain Marker tags

  • Material

    SS 316

  • Operating Temp:

    80° C – 538° C

  • Features:

    Telecommunication, Marine, Fibre Optic, Security & Alarm, Security & Alarm,Cable identification

3) Custom Marker Tags

  • Laser Marking system

    1) Used on all stainless steel cable ties Strapping metal marker Plates
    2) Bold letter and alphanumeric and sequential numbering availability

4) Carrier Strips

  • Description

    Coated Carrier strips & uncoated carrier strips

  • Material

    SS316

  • Operating Temp:

    92.5 mm to 252.5

  • Width:

    8mm

  • Packing:

    100 box

  • Features:

    Polyester Coated Self-locking,good for installation on resilient Objects
